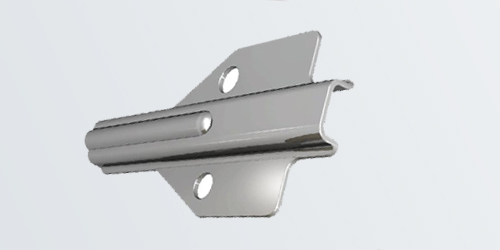

Specializing in custom die stamping, Paykra Tool and Die Inc. produces this part using a 5-stage hand transfer die. We designed and built the die as well as stamp the part in 14 gauge, 304 stainless steel. The part measures 0.075″ (1.9mm) thick, 8.661″ (220.0mm) long, 1.969″ (50.0mm) wide and 1.969″ (50mm) high. We ensured we met the tight tolerances of +/- 0.004″ (0.01mm) and provide the tumbling (cleaning and deburring) of the Finished tray bracket. The parts are shipped to our client in Canada within 3-4 weeks of receiving an order.
For more information on this custom die stamping project, see the table below or contact Paykra directly.
Highlights Of This Custom Die Stamping Project
| Product Name | Bracket |
| Product Description | Bracket for Tray |
| Project Scope | Design and build die to stamp and supply part from customer supplied print |
| Custom Die Stamping Capabilities Applied/Processes (Machining, Molding, Welding, etc) | Stamping – 5-Stage Hand Transfer Die |
| Tightest Tolerance | +/- 0.004″ (0.01mm) |
| Material Type | Stainless Steel, Type 304 |
| Material Thickness | 14 Gauge, 0.075″ (1.9mm) |
| Product Length | 8.661″ (220.0mm) |
| Product Width | 1.969″ (50.0mm) |
| Product Height | 1.969″ (50.0mm) |
| Secondary Operations Applied | Tumbling – Cleaning and Deburring |
| Industry for Use | Dental |
| Standards Met (Customer Supplied Print, ISO, ASTM, etc) |
Customer Supplied Print |
| Drawing Type Accepted | Any |
| Volume | Low |
| Delivery Time | 3 – 4 Weeks |
| Delivery Location | Canada |
